FIBRE GLASS MANHOLE COVER
HIGH PERFORMANCE – AVAILABLE UP TO D400 LOAD CLASS

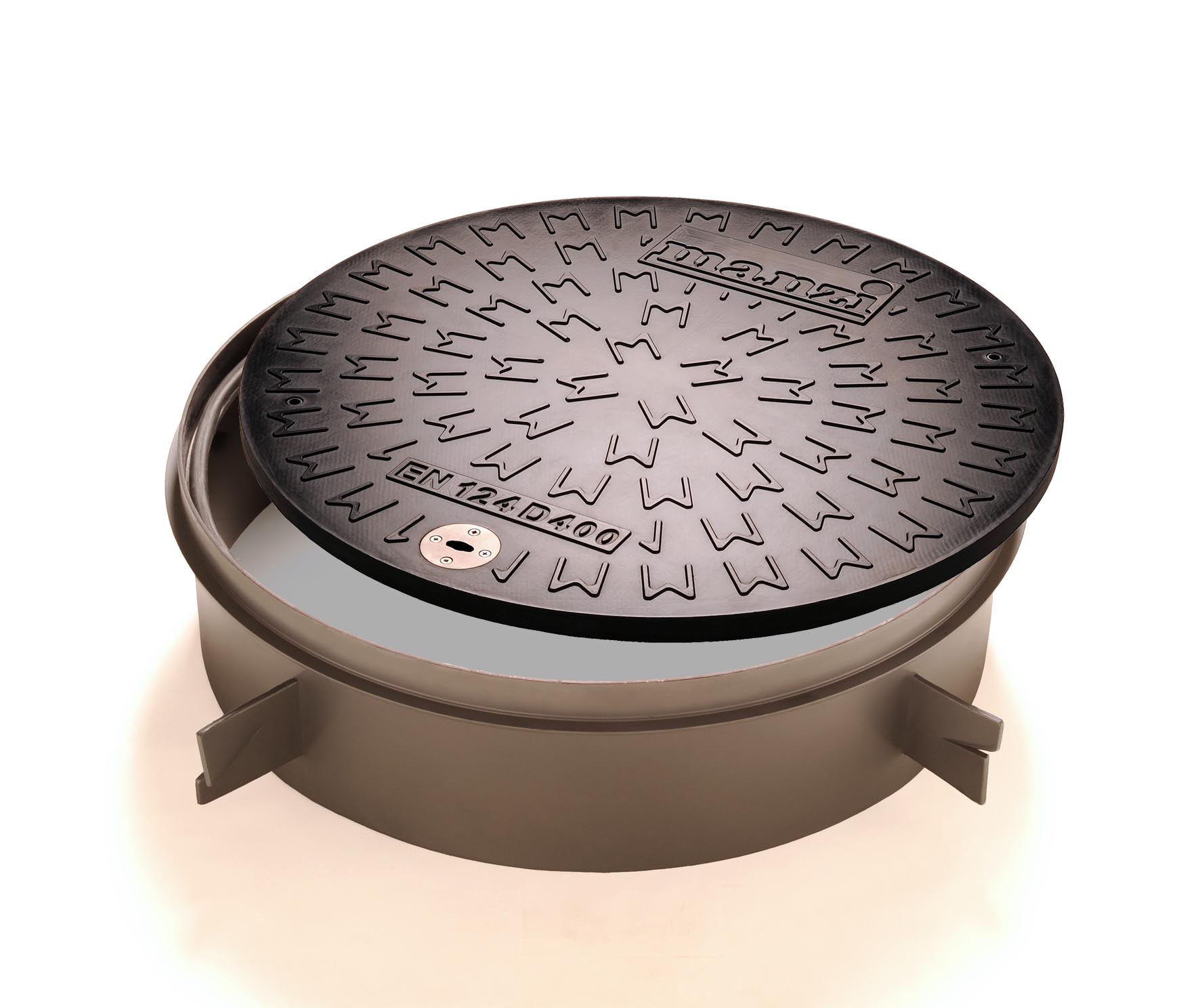

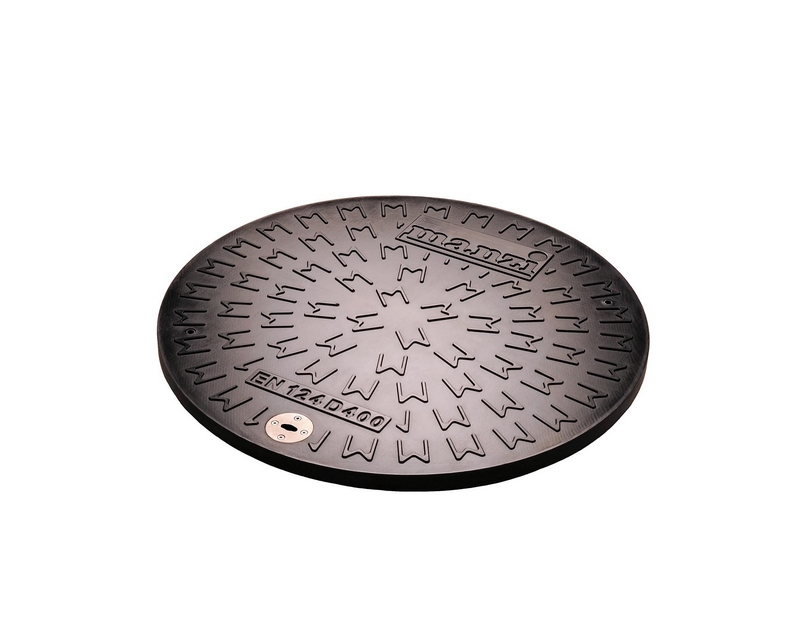

DESCRIPTION Circular or square watertight cover in GFRP (Glass Fibre Reinforced Polymer), conforming to class C250 and D400 of regulation EN124, produced by an ISO 9001:2000 certified company.

CHARACTERISTICS Cover with dimensions diameter 60 cm or 90 cm, or 80 cm × 80  cm net light passage diameter 57 cm, 87 cm, or 76 cm × 76 cm. Fitted with an opening system with specific steel key and elastic seal which guarantees water tightness.  Circular frame fitted with 4 anchoring points. Easily moveable thanks to its light weight, special anti-slip and anti-slide covering, silent to passing vehicles, anti-static.

INSTALLATION AREA Roadways (and footpaths), walkable platforms and parking areas, for all types of road vehicle. Group 4 regulation EN124 and inferior groups.

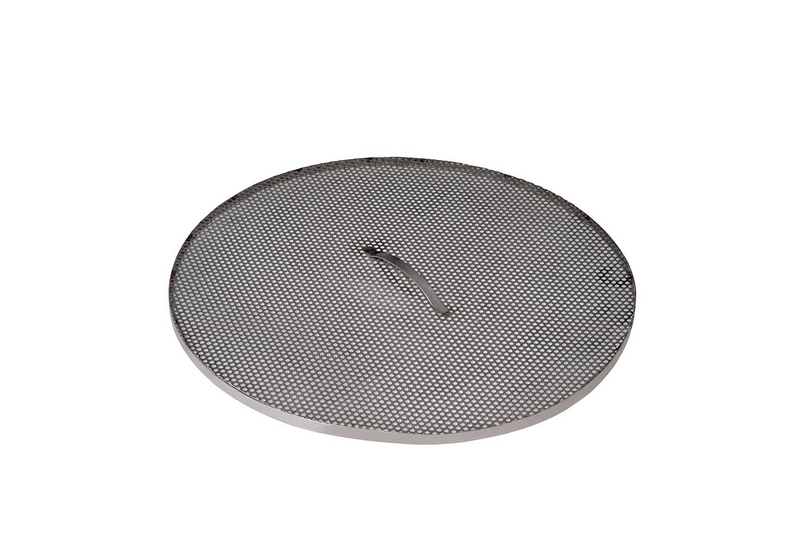

OPTIONAL – Lifting Handle – Customizable Colour – Safety Grid – Anti-tempering/Anti-theft device

SAFE – LIGHTWEIGHT - RELIABLE
Made in FRP (Fiberglass Reinforced Plastic), material that grants mechanical and chemical strenght, Manzi UNIVERSAL COVER embodies many advantages:

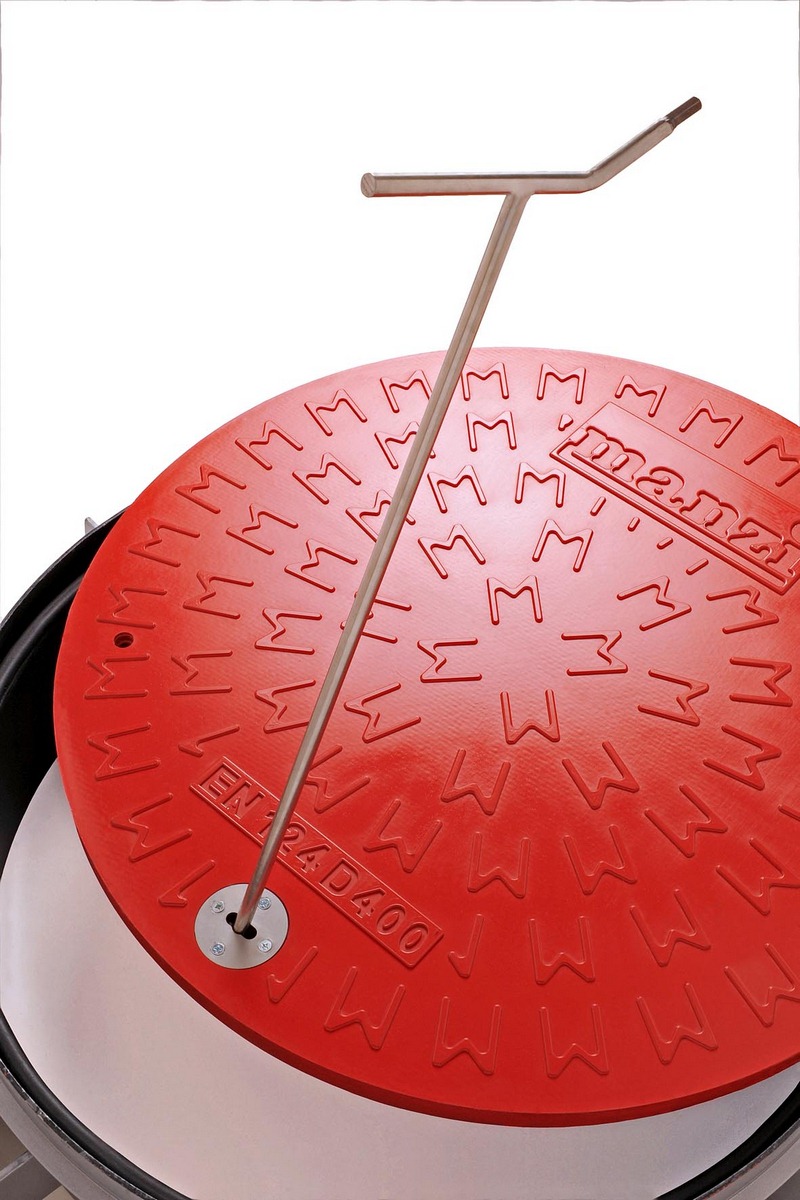

OPENING OPERATION IS EFFORTLESS AND IN COMPLETE SAFETY
HIGH MECHANICAL STRENGHT, IT STANDS EVEN HIGH STRESSES
THE FRAME IS PROVIDED WITH AN ELASTIC GASKET WHICH GRANTS WATER TIGHTNESS
THE FRP LOW-PROFILE DESIGN GUARANTEES PROBLEM FREE OPERATION, SUCH AS SNOW SWEEPING BY SNOW PLOUGH MACHINE
ANTI-SKID/ ANTI-SLIPPAGE COATING

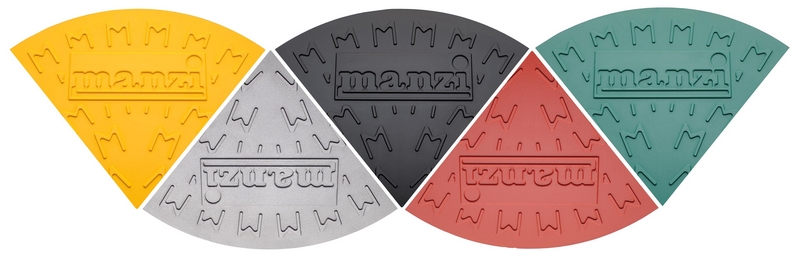

CUSTOMIZABLE IN SEVERAL COLOURS, MEANT TO CORRECTLYIDENTIFYTHE CONTENT OF EACHTANK
NOISE-FREE, WHISPERING FOR VEHICLES RUNNING OVER

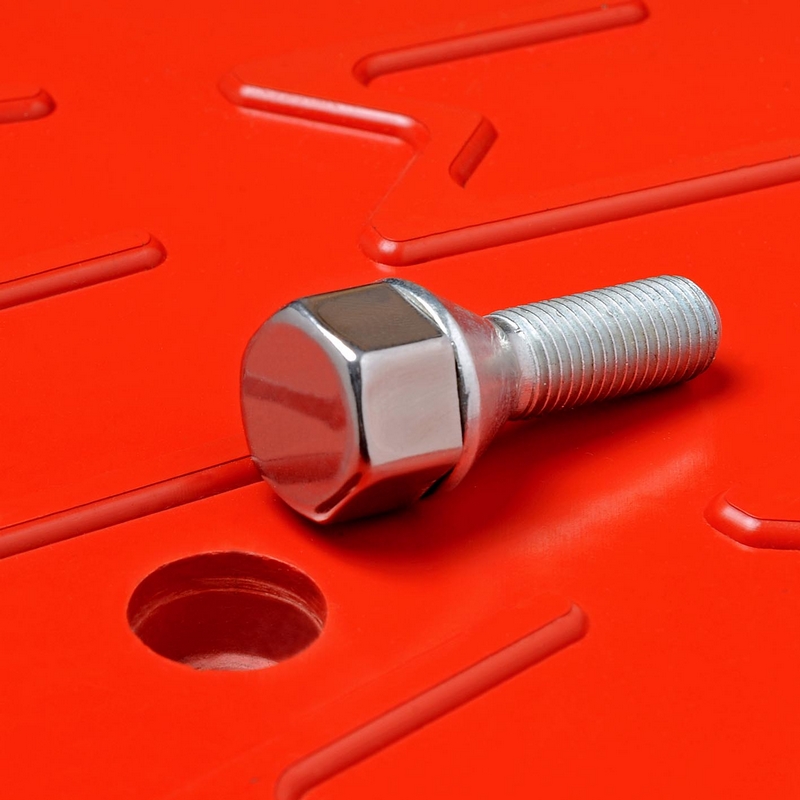

EXCLUSIVE ANTI-TEMPERING / ANTI-THEFT DEVICE
ADOPTION OF ANTI-CONDENSING MATERIAL
FRP IS A SPECIAL MATERIAL, OVER-HEATING RESISTANT AND NOT WARPING BECAUSE OF HOT TEMPERATURE
Brochure
BROCHURE PDF
PRODUCT SHEET
PRODUCT SHEET RO 01
PRODUCT SHEET SQ 00
TECHNICAL SHEET
cfrpro60d400
cfrpro90d400
cfrpsq8080d400
MANUALS
INSTALLATION
MAINTENANCE MANUAL
CERTIFICATIONS
Test Giordano's Istitute for UNIVERSAL COVER C90
DWG
