Manzi Aurelio Srl has been producing biological sewage treatments since 90s.
Activated sludge total oxidation sewage treatment is the most widespread method ofdomestic discharge purification.

All plants are equipped with programmable electrical relay for efficiency and consumption optimization.

DEPURFAMILY®
ORGANIC SYSTEM Discharge Tab. 3 Appendix 5 Legislative Decree 152/06

The first monolithic sewage treatment plant designed for families. Easy to install, silent pre-assembled and equipped with programmable timer. It grants effluent contorm to EEC Directive 91/271 and Italian DI. 152/06






Available in models BASE (5 PE),MAXI (10 PE) e DUO (20 PE).

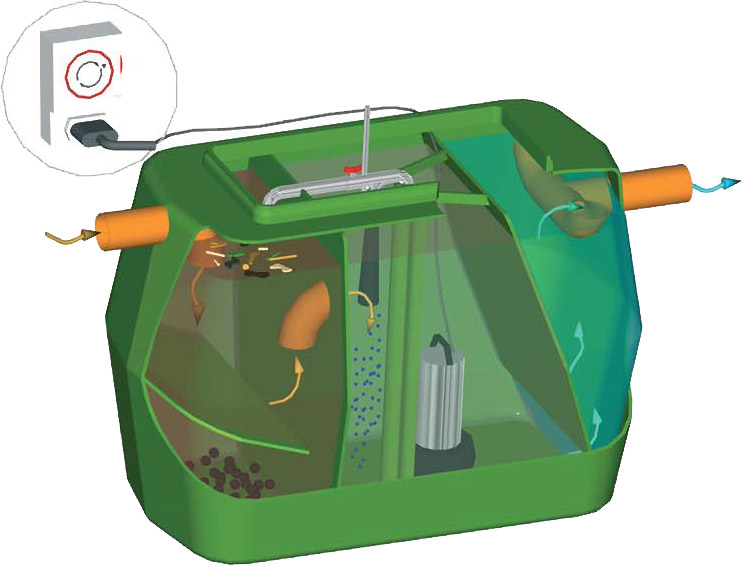

DEPURFAMILY® mod. BASE is made from GFRP (Glass Fibre Reinforced Polymer). It is a compact purification system with active muds, designed for the treatment of domestic drainage for households of up to 5 people or equivalent. Waste water is discharged within the acceptable limits as per Table 3 of Legislative Decree 152/06. The system has a single block with a GFRP inspection cover and PVC hydraulic connectors; it is perfectly watertight and resistant to corrosive agents and some chemical components present in waste and in the ground. The high mechanical resistance means that it can be buried without the risk of deformation due to ground pressure or overloading. The system is fitted with a programmable clock to set oxygenation intervals.

DF / DFS Line

Scope:

·   Housing
·   Residential Buildings
·   Public housing and building
·   Tourist accomodations

Monolithic solution available in the following models:



5/10/15/20/30/35/40/50/
75/100/125/150/200

Equivalent Inhabitants

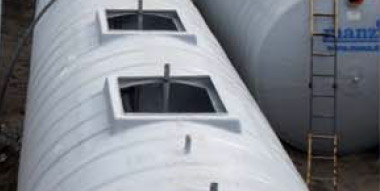

The mod. DF OXIDATION SYSTEM is made of FRP (Fiberglass-Reinforced Polyester). It is an activated sludge oxidation system for domestic and assimilable wastewater comprising: - primary sedimentation sector with sludge digestion compartment. - total oxidation sector with activated sludge and dispersed biomasses, submersible aeration equipment and Venturi ejector. - secondary sedimentation sector with recirculation pump/s. - fiscal sampling pit. Mod. DF is equipped with 600x600 mm inspection windows. Ali unions are made of UNI 1401-1 PVC. The electric control and monitoring panel conforms to IEC standards and controis the oxygenation cycles.

DFSBR / DFSBRF Line

Suitable for VARIABLE FLOW applications
Scope :

·   Seasonal Housing
·   Farmhouse
·   Dairies
·  Wine Production Activities

Monolithic solution available in the following models:



10/20/30/40/50/75/
100/125/ 150/200

Equivalent Inhabitants





The mod. DFSBR OXIDATION SYSTEM is a monobloc unit made of FRP (Fiberglass Reinforced Polyester).lt is an activated sludge system with S.B.R. (sequencing batch reactor) technology that fun-ctions in programmed sequential steps and comprises: - primary sedimentation sector with sludge digestion compartment. - oxidation sector with submersible aeration equipment and Venturi ejector. - secondary sedimentation sector with intermittent reactor drain pump. - fiscal sampling pit. DFSBR is equipped with 600x600 inspection windows. Ali unions are made of UNI 1401-1 PVC. The electric panel conforms to IEC standards and controis the oxygenation and draining cycles.

DFVA / DFVAF Line

Suitable for VARIABLE FLOW applications with PEAK DISCHARGES
Scope :

·  Service Stations
·   Restaurants and Snack Bar
·   Campings

Monolithic solution available in the following models:



10/20/30/40/50/75/
100/125/ 150/200

Equivalent Inhabitants





The Mod. DFVA OXIDATION SYSTEM WITH ACCUMULATION is a monobloc unit made of FRP (Fi-berglass-Reinforced Polyester). It is an activated sludge oxidation system for domestic and assimilale wastewater characterized by a discontinuous hydraulic load and comprising: - primary sedimentation and accumulation sector with lift pump controlied by a level switch. - total oxidation sector with activated sludge and dispersed biomasses, submersible aeration equip-ment with Venturi ejector. - secondary sedimentation sector with sludge recirculation. - sampling pit. DFVA is equipped with 600x600 inspection windows. Ali unions are made of UNI 1401-1 PVC. The electric panel conforms to IEC standards and Controls the oxygenation cycles.

EVAPOTRANSPIRATION AND HERBAL PURIFICATION WITH HORIZONTAL SUBSURFACE FLOW:
In case of no discharge or further pollutant abatement.

This system does not produce discharge and it is suitable when it is not possible to drain into sewer or the ground. A lifting pit, an absorption vessel and a recirculation pit compose the system.

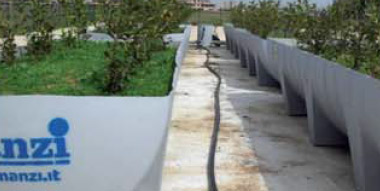

EV Line – EVAPOTRANPIRATION VESSEL PLANT

with single wall preassembled FRP vessel
with double wall preassembled FRP vessel (for installation in environmentally sensitive areas)

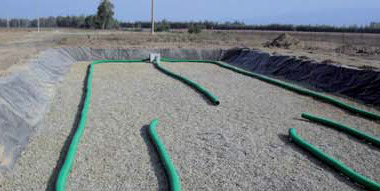

built on site with HDPE cloth

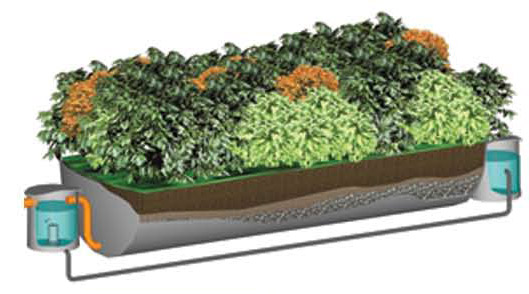

FSS Line – HORIZONTAL HERBAL LINE FURTHER POLLUTANT ABATEMENT PLANT

with single wall preassembled FRP vessel
built on site with HDPE cloth



water re-use system
ACQUABIS is designed to store and treat rain water and water generated from domestic activities such as laundry, dishwasher and bathing and allow their re use (i.e. filling of water closet holding water tank or irrigation).

Download the ACQUABIS technical sheet
TAILOR MADE SOLUTIONS
In case of pollutant load greater that 10 kg/day BOD, Manzi Aurelio Srl proposes TAILOR MADE SOLUTIONS.
MANZI PRODUCTS ADVANTAGES

·   BIOLOGICAL PROCESS  It grants high performances, easy maintenance and low consumptions.

·   FIBERGLASS It grants perfect liquid tightness, long duration, heavy load traffic resistance, easy installation and even aboveground positioning.

·   MONOLITHIC: Every part and component is pre-assembled before delivery. Thus start-up operations are easy and installation is fast and in safety.


POSSIBLE APPLICATIONS OF MANZI SEWAGE TRATMENT PLANTS:
HOUSING SETTLEMENTS Site development Urbanizations Communities School building Stations and barracks
AGRO-FOOD INDUSTRY Wine production Cheese production Meat processing
TURISTIC ACCOMODATIONS Hotels Agriturisms Camping Restaurants and caterings Sports facilities
INDUSTRIES Production sites Construction sites Transport activities
INFRASTRUCTURES AND PRODUCTIVE SITES Shopping center Big retail channel supermarkets and activities
