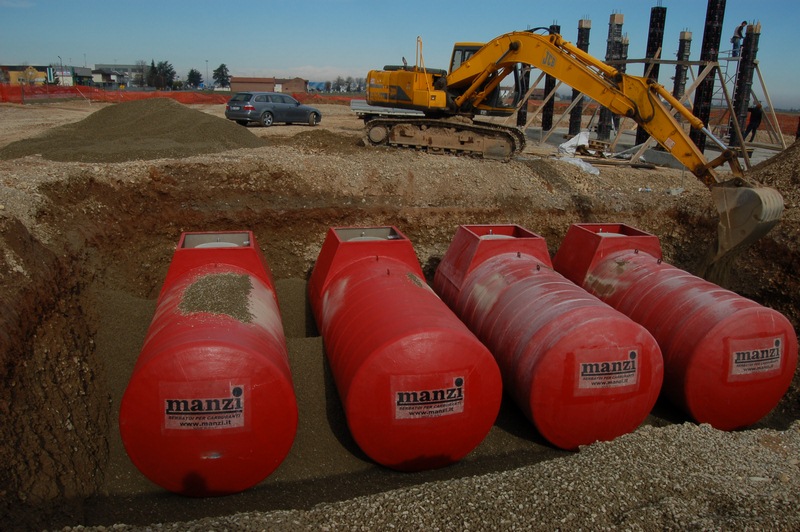

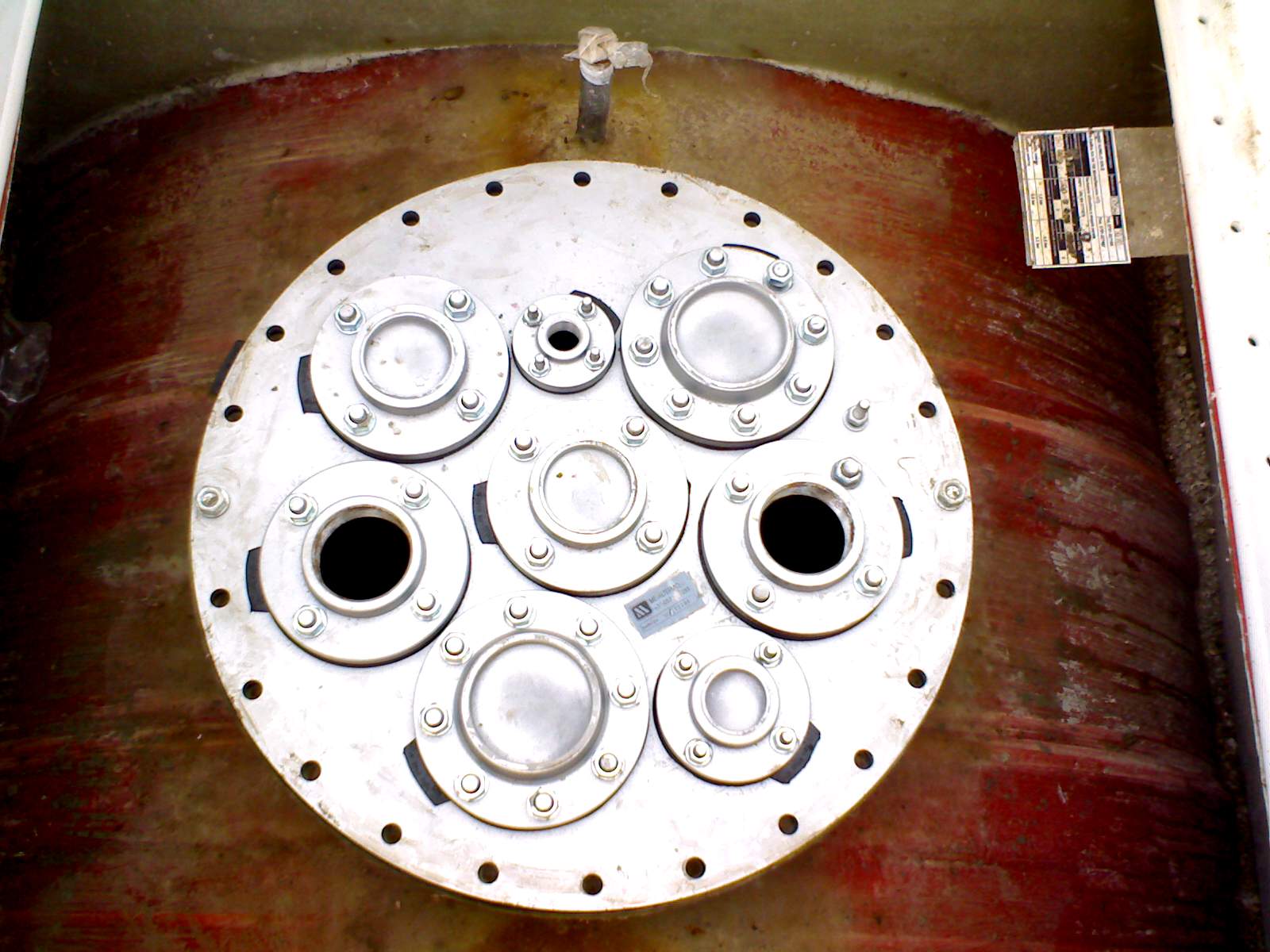

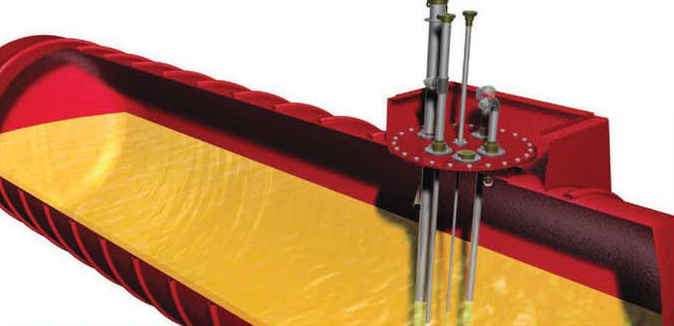

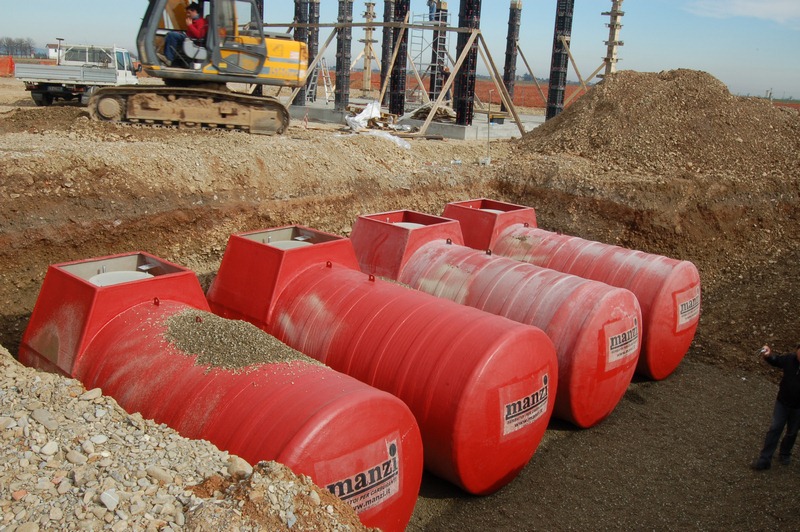

Underground double-wall fuel tank PetrolTank® is made in FRP (fiberglass reinforced plastics). PetrolTank® is ma de ofthree parts: internai watt, extern al wall and monitora ble interstice, which is in-built, granting high resi-stance and tightness. It is provided with manhole, flanged edge semi-collar and calibrated dipstick. Petroltank® complies with Italian Ministerial Decree November, 29th2002

It represents a Consolidated solution for the Italian and European market, in line with the US and Canadian tra-ditions.

PetrolTank® weights five times less than a traditional fuel tank.

DOUBLE-WALL FUEL TANK PETROLTANK CONFORMS TO ITALIAN DECREE29TH NOVEMBER 2002 ART. 2 PAR. 1/ABC AND 2/A

PETROLTANK® CAN STORE

  1. TRADITIONAL FUELS
  2. BIOFUEL
  3. CHEMICALS,POLLUTANTS AND ADDITIVITS /I.E.) ADBLUES
  4. AIRJET FUEL
General characteristics
MECHANICAL STRENGTH (UP TO 200KN)
FRP IS A SPECIAL MATERIAL, WHICHISELECTRICNON-STATIC, RESISTANT AGAINST CORROSION AND GALVANIC CURRENT
EASY TO TRANSPORl HANDLE AND INSTALL, IN COMPLETE SAFETY
CHEMICAL RESISTANCE (UP TO 1200 CHEMICALS)
PROTECTION FROM ENVIRONMENTAL RISKS AND THE COSTS OF REMEDIATION

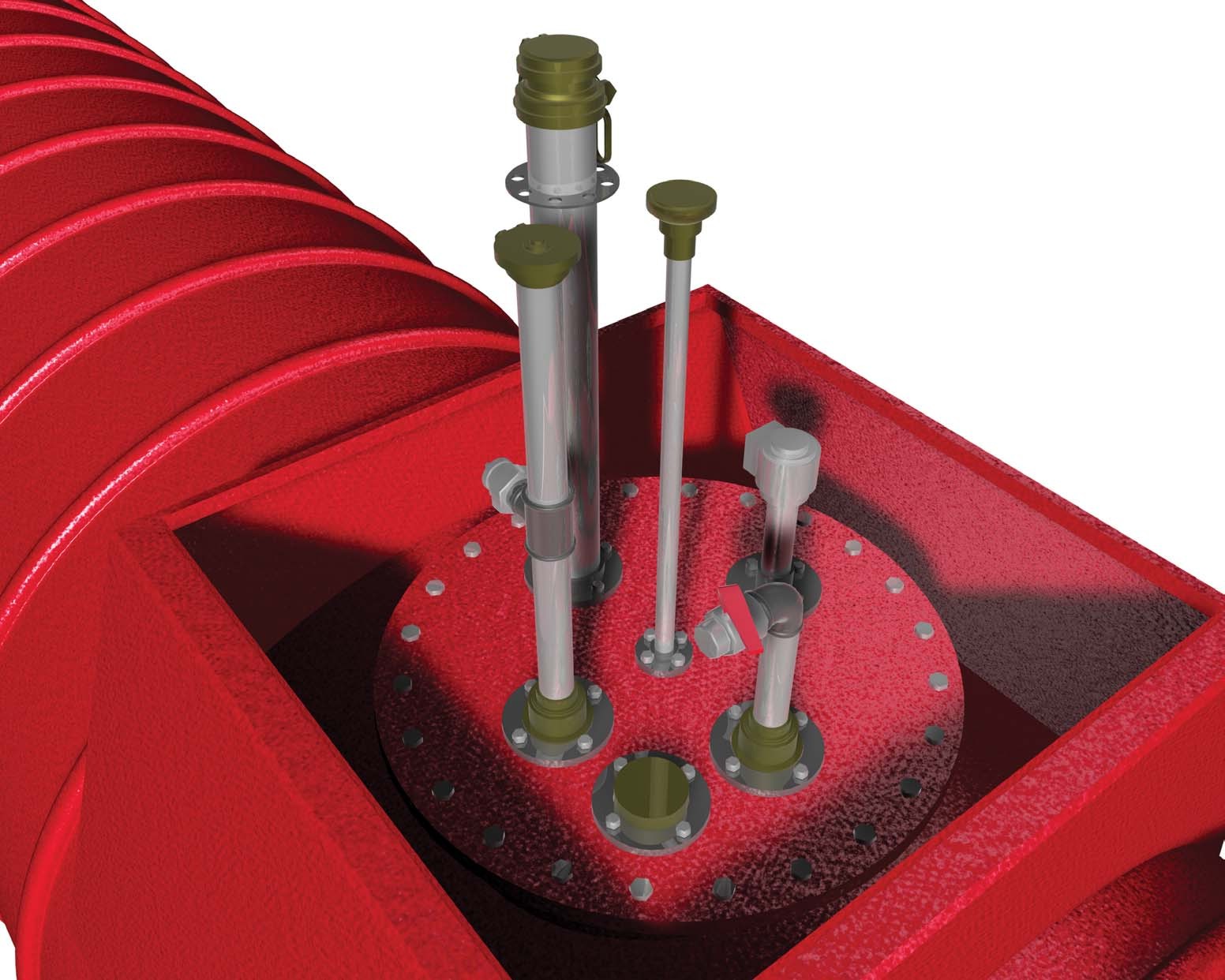

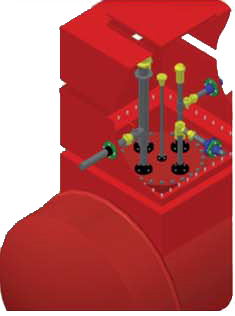

SEMI-COLLAR IS INSERTED INTO TANK STRUCTURE, TO CONTAIN ANY ACCIDENTAL FUEL SPILLAGE. IT MEASURES 140CMXI40CM AND EVERY TYPE OF SUMPS AND RAISERS CAN BE INSTALLED ON IT.
Optional
  • Customizable manhole flanges
  • Vacuum based leak detection system
  • Additional manhole and semicollar
  • Supports for aboveground installation

SPILL CONTAINMENT SUMP

• 120x120xh120 cm
Bonded spill containment sump

• 120x120xh 120 cm
Flanged spill containment sump

• 140x140xh120 cm
Bonded spill containment sump

• 140x140xh120 cm
Flanged spill containment sump



FIBERGLASS MANHOLE COVER "UNIVERSAL COVER "

80x80 cm square and round diameter 90 cm, strenght class C250 and D400





SINGLE COMPARTMENT

TWO COMPARTMENTS

MODEL

DIAMETER CM

LENGHT CM

WEIGHT KG

LENGHT CM

WEIGHT KG

THICKNESS MM

5000

160

275

420

no

no

11

10000

200

350

670

no

no

11

15000

200

515

1100

520

1300

11

20000

200

680

1450

685

1650

11

25000

240

595

1400

600

1600

11

30000

240

710

1645

715

1885

15

35000

240

825

1925

830

2150

15

40000

240

935

2200

940

2440

15

50000

240

1165

2850

1170

3090

15

* 60000

240

1360

3450

1365

3690

15

*not for the italian market
NOTE: the measurements shown are not binding: Manzi Aurelio Srl reserves the right to make any changes it considers necessary.

THE FIBERGLASS TANK HAS A DURATION OF 30 YEARS TESTED AND CERTIFIED
